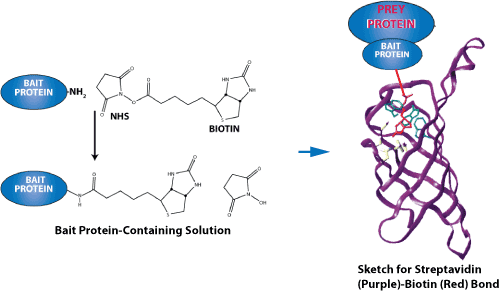

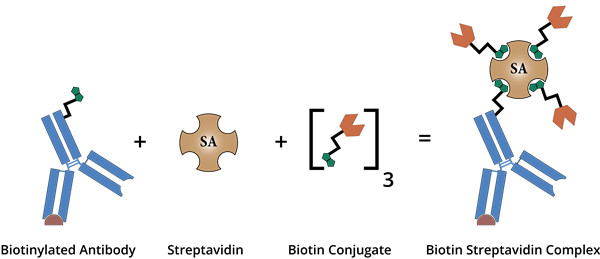

專肽生物合成用于蛋白質-蛋白質相互作用研究的生物素化肽。盡管生物素可以在 N 端或 C 端引入（通過賴氨酸殘基），但我們建議使用 N 端修飾，因為它成本低、成功率高、周轉時間短且易于操作。因為多肽合成是從 C 端到 N 端合成的，因此，N 端修飾是 SPPS步驟的最后一步，不需要額外的特定縮合步驟。相比之下，C 端修飾需要額外的步驟，并且通常更復雜。當然，原則上生物素可以定位在任何地方。

生物素可以通過多種不同的接頭或間隔物與肽分離。盡管如此，還是建議包含一個靈活的間隔物，例如 Ahx（一個 6 碳接頭），以使生物素標簽更加穩定或靈活。

專肽生物在 N 端或 C 端提供生物素化：生物素-N 端、賴氨酸-生物素-肽中間和賴氨酸-生物素-C 端。
專肽生物還可以使用 Ahx 接頭或長碳 (LC) 接頭提供生物素化：生物素-Ahx-N 末端、Lys-Ahx-生物素-肽中間、Lys-Ahx-生物素-C-末端。

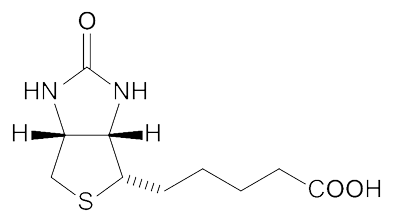

（生物素結構）

示例：
GRGDS在N端和C端標記生物素的結構展示。

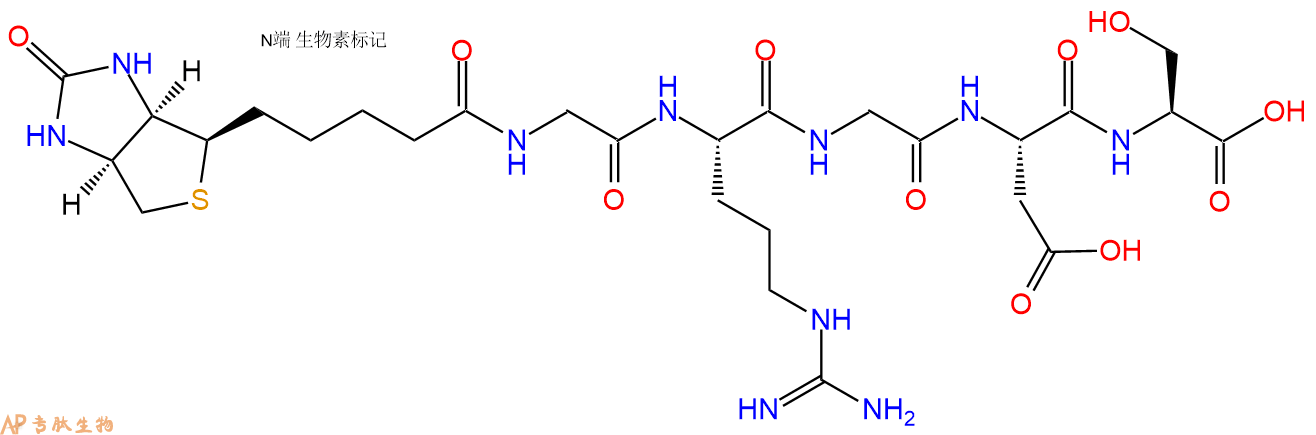

1、GRGDS在N端標記生物素，不增加Ahx 接頭

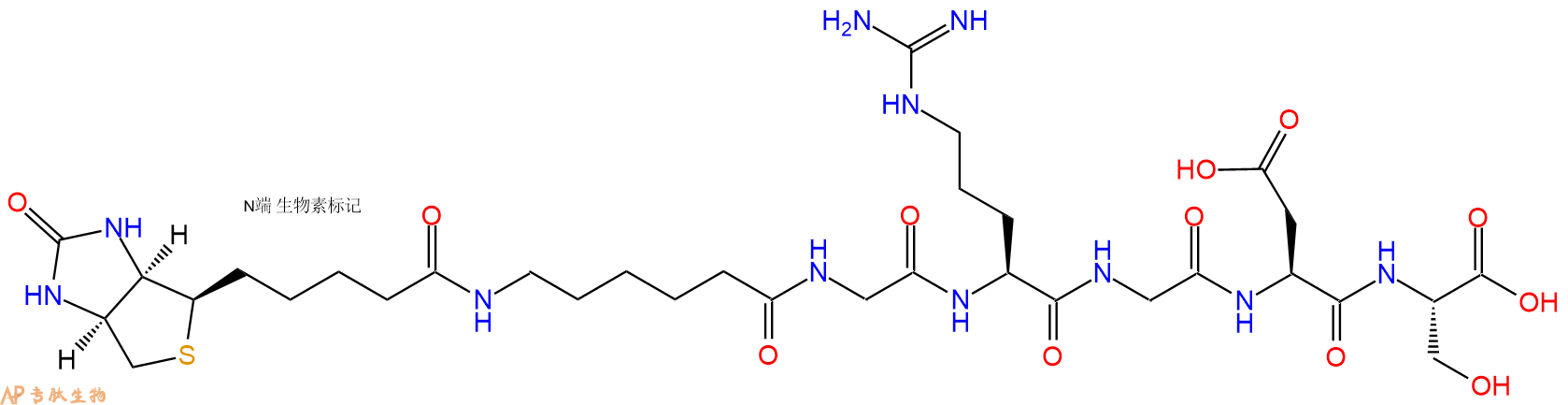

2、GRGDS在N端標記生物素，增加一個Ahx 接頭

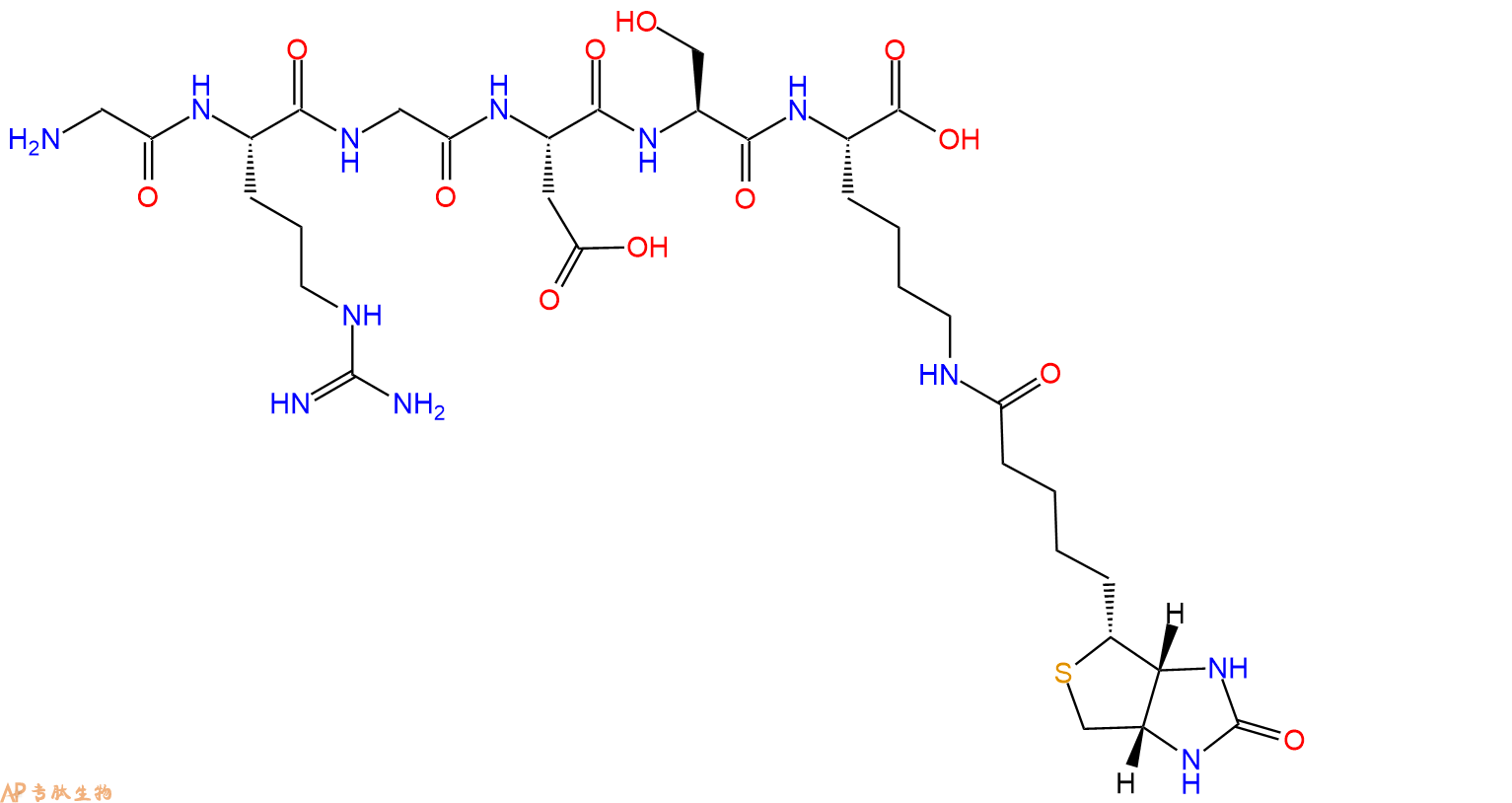

3、GRGDS在C端標記生物素，不增加Ahx 接頭

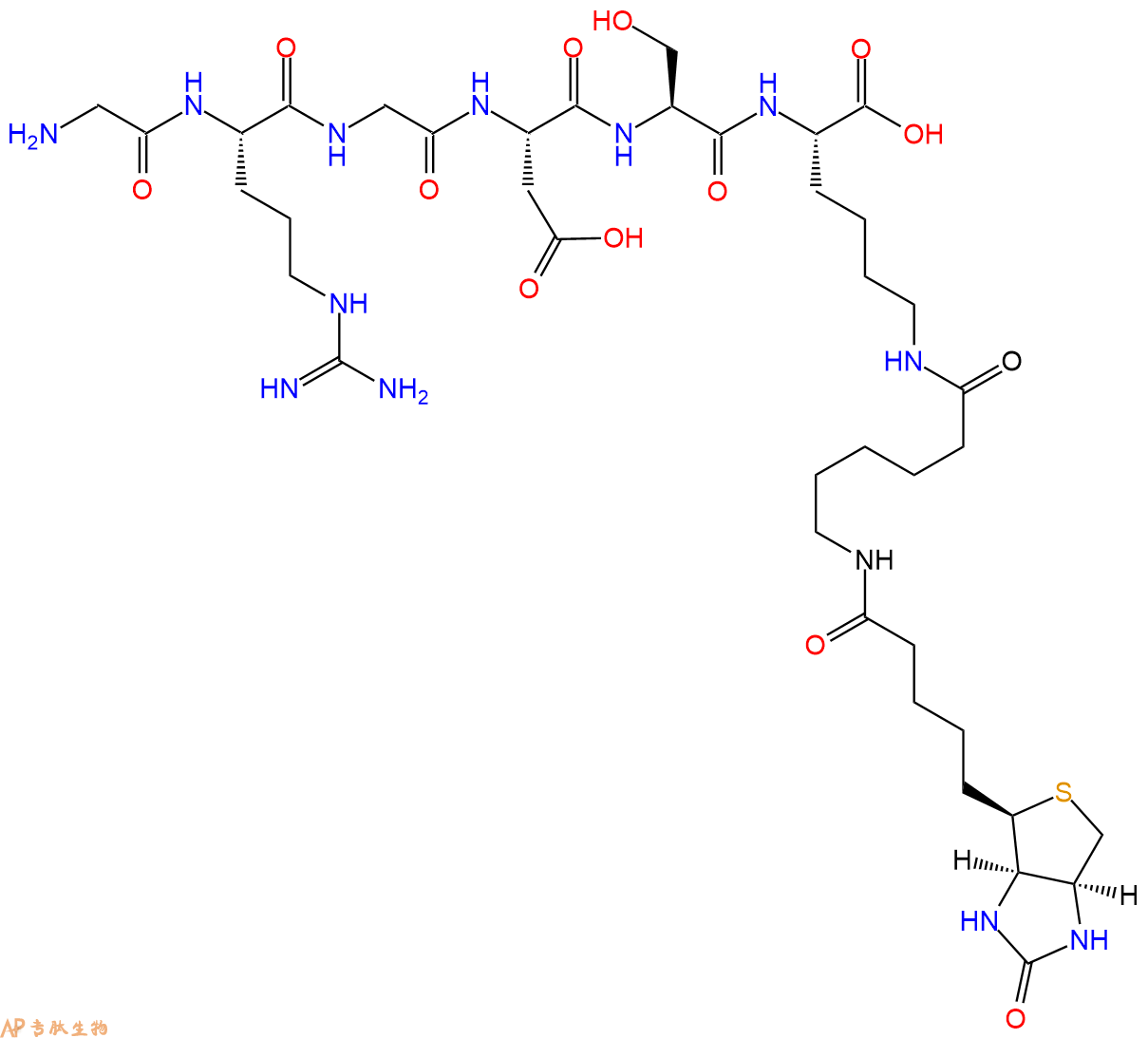

4、GRGDS在C端標記生物素，增加一個Ahx 接頭。

多肽Biotin-Leu-Cys-Leu-Leu-Gly-Asp-Phe-Phe-Arg-Lys-Ser-Lys-Glu-Lys-Ile-Gly-Lys-Glu-Phe-Lys-Arg-Ile-Val-Gln-Arg-Ile-Lys-Asp-Phe-Leu-Arg-Asn-Leu-Val-Pro-Arg-Thr-Glu-Ser-COOH的合成步驟：

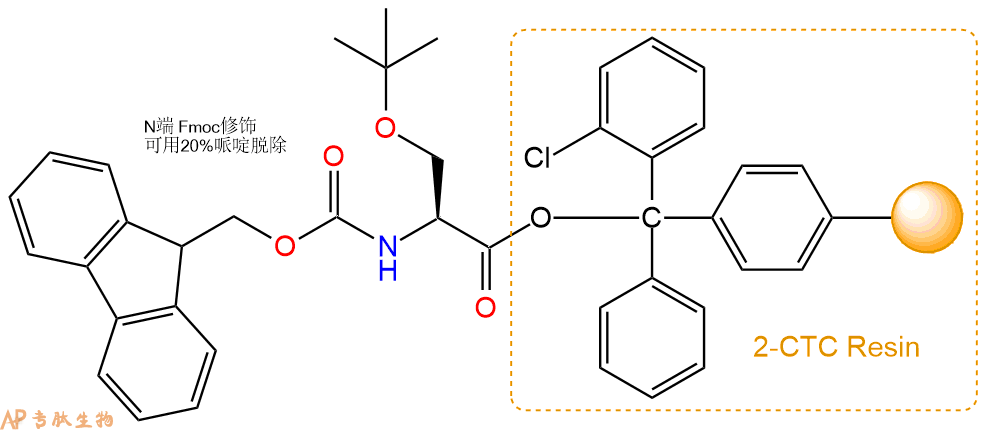

1、合成CTC樹脂：稱取2.43g CTC Resin（如初始取代度約為1.17mmol/g）和3.41mmol Fmoc-Ser(tBu)-OH于反應器中，加入適量DCM溶解氨基酸（需要注意，此時CTC樹脂體積會增大好幾倍，避免DCM溶液過少），再加入8.53mmol DIPEA（Mw：129.1,d：0.740g/ml），反應2-3小時后，可不抽濾溶液，直接加入1ml的HPLC級甲醇，封端半小時。依次用DMF洗滌2次，甲醇洗滌1次，DCM洗滌一次，甲醇洗滌一次，DCM洗滌一次，DMF洗滌2次（這里使用甲醇和DCM交替洗滌，是為了更好地去除其他溶質，有利于后續反應）。得到  Fmoc-Ser(tBu)-CTC Resin。結構圖如下：

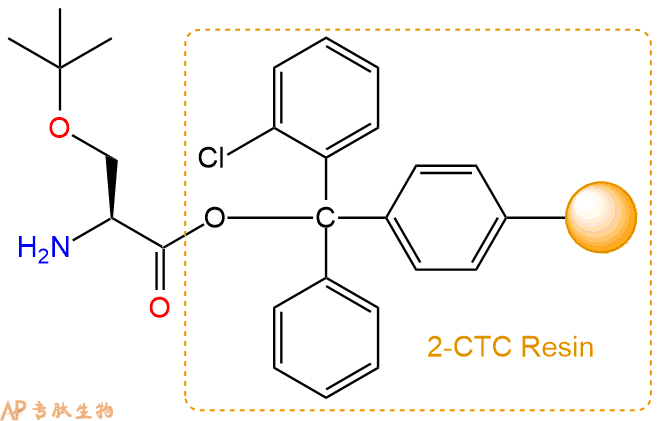

2、脫Fmoc：加3倍樹脂體積的20%Pip/DMF溶液，鼓氮氣30分鐘，然后2倍樹脂體積的DMF 洗滌5次。得到 H2N-Ser(tBu)-CTC Resin 。（此步驟脫除Fmoc基團，茚三酮檢測為藍色，Pip為哌啶）。結構圖如下：

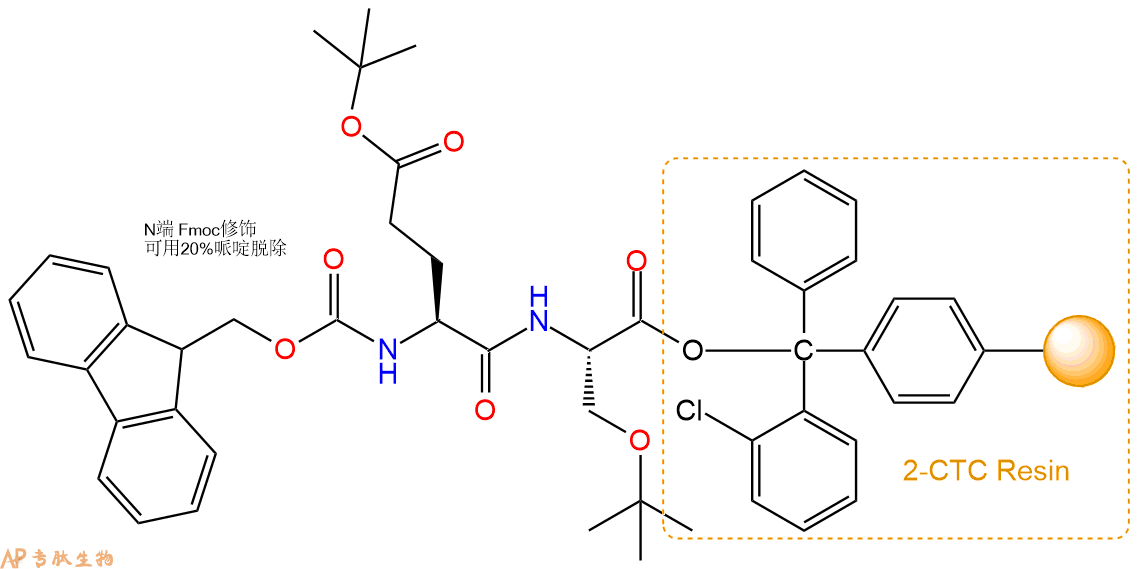

3、縮合：取8.53mmol Fmoc-Glu(OtBu)-OH 氨基酸，加入到上述樹脂里，加適當DMF溶解氨基酸，再依次加入17.06mmol DIPEA，8.1mmol HBTU。反應30分鐘后，取小樣洗滌，茚三酮檢測為無色。用2倍樹脂體積的DMF 洗滌3次樹脂。（洗滌樹脂，去掉殘留溶劑，為下一步反應做準備）。得到Fmoc-Glu(OtBu)-Ser(tBu)-CTC Resin。氨基酸：DIPEA：HBTU：樹脂=3：6：2.85：1（摩爾比）。結構圖如下：

4、依次循環步驟二、步驟三，依次得到

H2N-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Leu-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Leu-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Cys(Trt)-Leu-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

H2N-Cys(Trt)-Leu-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

Fmoc-Leu-Cys(Trt)-Leu-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin

以上中間結構，均可在專肽生物多肽計算器-多肽結構計算器中，一鍵畫出。

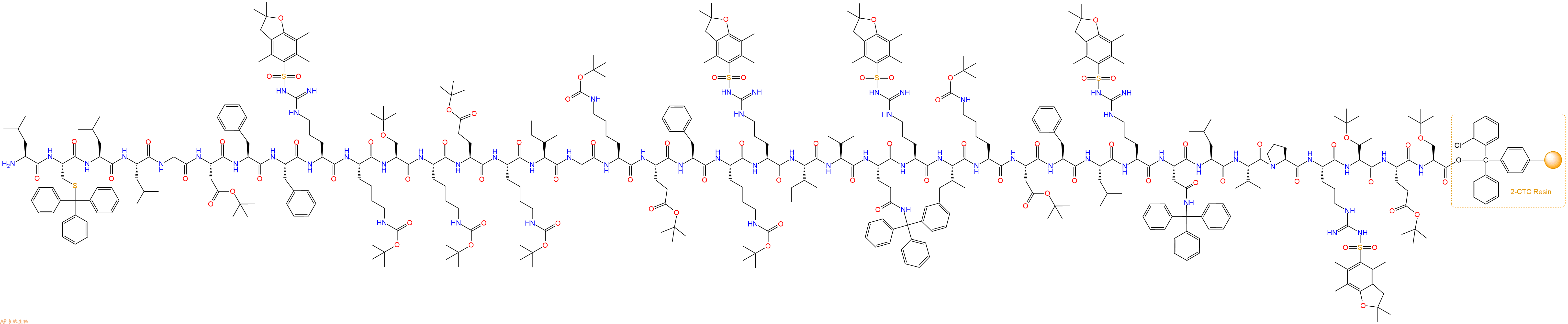

最后再經過步驟二得到 H2N-Leu-Cys(Trt)-Leu-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin，結構如下：

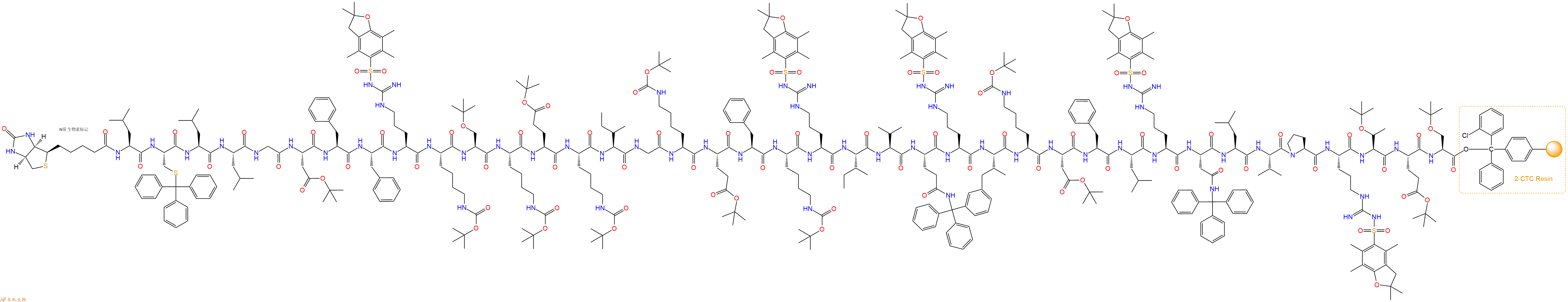

5、生物素反應連接：在上述樹脂中，加入適當DMF后，再加入8.53mmol 生物素到樹脂中，再加入17.06mmol DIPEA、8.1mmol HBTU，鼓氮氣反應30分鐘。用2倍樹脂體積的DMF 洗滌3次樹脂（洗滌樹脂，去掉殘留溶劑，為下一步反應做準備）。 得到Biotin-Leu-Cys(Trt)-Leu-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTCResin。 結構如下：

6、切割：6倍樹脂體積的切割液（或每1g樹脂加8ml左右的切割液），搖床搖晃 2小時，過濾掉樹脂，用冰無水乙醚沉淀濾液，并用冰無水乙醚洗滌沉淀物3次，最后將沉淀物放真空干燥釜中，常溫干燥24小試，得到粗品Biotin-Leu-Cys-Leu-Leu-Gly-Asp-Phe-Phe-Arg-Lys-Ser-Lys-Glu-Lys-Ile-Gly-Lys-Glu-Phe-Lys-Arg-Ile-Val-Gln-Arg-Ile-Lys-Asp-Phe-Leu-Arg-Asn-Leu-Val-Pro-Arg-Thr-Glu-Ser-COOH。結構圖見產品結構圖。

切割液選擇：1）TFA：H2O=95%：5%

2）TFA：H2O：TIS=95%：2.5%：2.5%

3）三氟乙酸：茴香硫醚：1，2-乙二硫醇：苯酚：水=87.5%：5%：2.5%：2.5%：2.5%

（前兩種適合沒有容易氧化的氨基酸，例如Trp、Cys、Met。第三種適合幾乎所有的序列。）

6、純化凍干：使用液相色譜純化，收集目標峰液體，進行凍干，獲得蓬松的粉末狀固體多肽。不過這時要取小樣復測下純度 是否目標純度。

7、最后總結：
